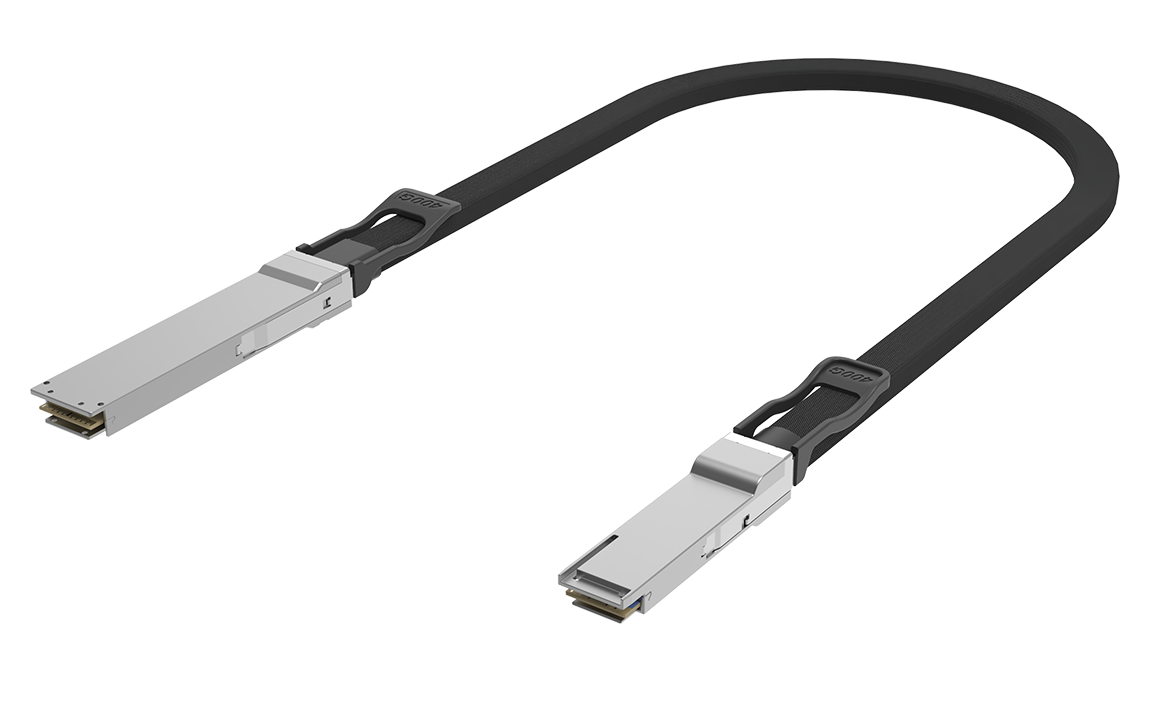

OSFP-RHS800 400 Gbps to QSFP112 400 Gbps DAC
Product Description: OSFP-RHS 800 Gbps to QSFP112 400 Gbps Direct Attached Copper Cable
Series: 800-GBPS OSFP RHS
Data Rate: 800 Gigabit Ethernet (8x100G to 4*2x100G)
Bulk Cable: Zhaolong LONGSPEED® Twin-Ax HSC Series
Cable Construction: Loose wire with Metial and PET Braid
Signal Wire Size: 26-30 AWG
Cable Length: 1.0-3.0 M
LSZH Products Available
Temperature Range: 0-70℃
Compliant with OSFP MSA Standard
Compliant with QSFP112 MSA Standard
Compliant with IEEE 802.3ck (800GBASE-CR8) Standard
Compliant with IEEE 802.3cd (400GBASE-CR8) Standard
Compliant with IEEE 802.3bj (200GBASE-CR8) Standard
Compliant with IEEE 802.3by (25 Ethernet) Standard
Data Rate: 112G PAM-4 Per Channel Total Bandwidth 800 Gbps (8 Lane 112G PAM-4)
Low Power Consumption
Management Interface follows CMIS Standard and can be customized
Excellent SI Performance
Custom Colors For Pull Tab
Market and Application
High-Performance Computing (HPC)
Network Interface Cards (NIC's)
Data Center and Enterprise Storage Systems
Telecommunication Equipment
800Gbps Ethernet
InfiniBand? 8X NDR/HDR/EDR
Mechanical Performance
OSFP-RHS800 Module
Module Insertion: 40N (RHS type: 55N)Maximum
Module Extraction: 30N Maximum
Latch Retention: 125N Minimum
Rated Durability Cycles: 50 Cycles Minimum
QSFP112 Module
Module Insertion: 60N Maximum
Module Extraction: 30N Maximum
Latch Retention: 90N Minimum
Rated Durability Cycles: 50 Cycles Minimum
Electrical Performance
OSFP-RHS800 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
QSFP112 Module
Supply Voltage 3.3 VDC +/- 5%
Supply Current :0.03A Max at 3.135V
Power Consumption (DAC) : 0.125 Watt Max
Voltage: 30VAC per contact
Current: 0.5A/Signal Contact
Signal Integrity
IEEE 802.3ck (800GBASE-CR8)
IEEE 802.3cd (400GBASE-CR8)
IEEE 802.3bj (200GBASE-CR8)
IEEE 802.3by (25 Ethernet)
InfiniBand? 8X NDR (800G) /HDR(400G) / EDR(200G)
Product Environmental Compliance
1. RoHS2.0: Compliant
2. China RoHS: Yes
3. REACH SVHC: Yes
4. Low-Halogen Products: Optional
